Our swivels are 100% Australian made, and can come in various materials, fabricated to your specifications. BSP Parallel threads are standard, but tapered threads can be supplied as well as other thread types or Higher Pressure ratings. Female / Female, Male / Male, hosetail, 90° or weldable combinations are available upon request. Both Bronze & Stainless Swivels are designed for 100 RPM maximum rotation for optimum lifespan.

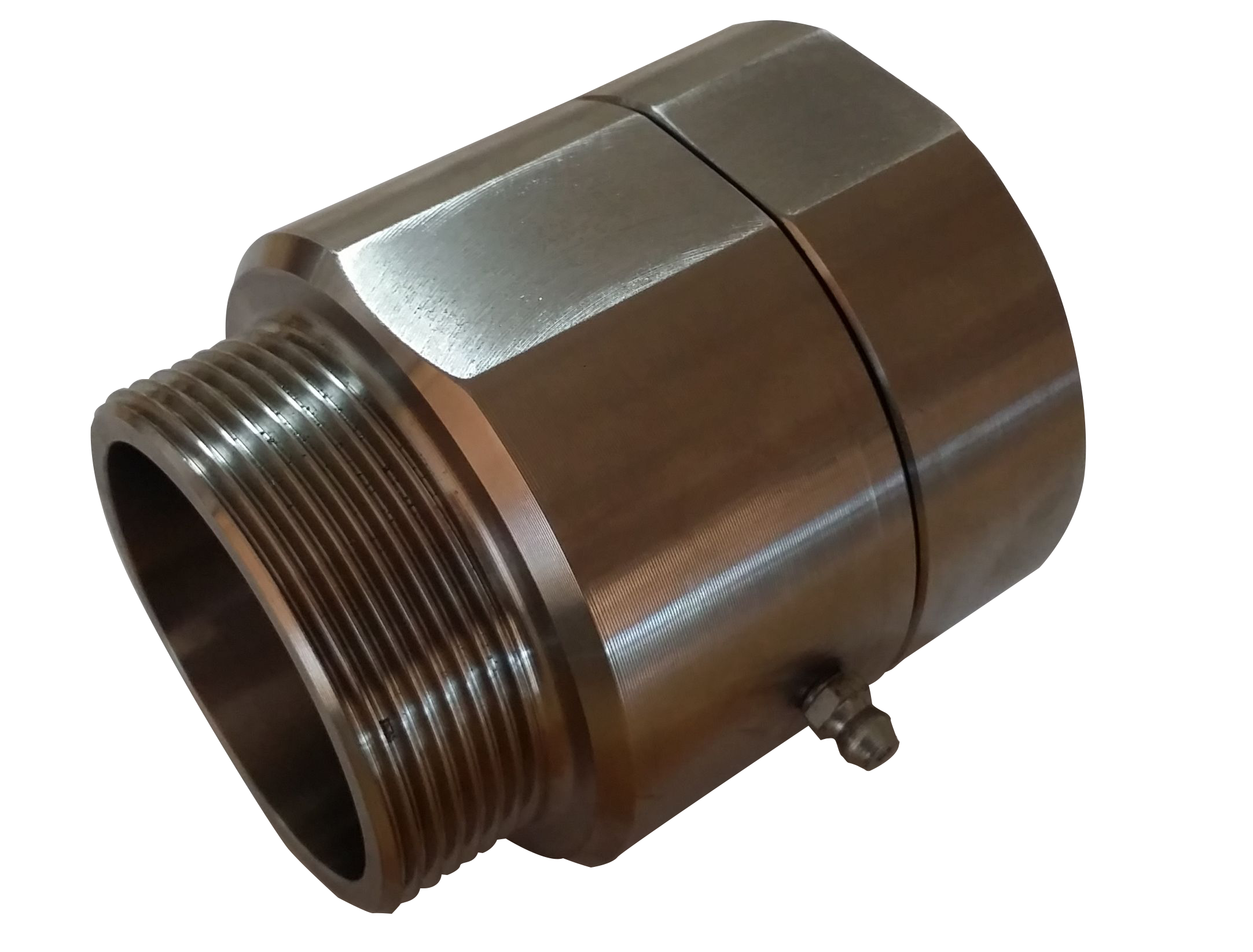

Stainless Steel Swivel with BSP thread
Features:
- 316 Stainless Steel with Viton O’Ring seal to suit water, fuel or chemical.
- DOUBLE ball race, Grease Nipple Pressure to 1500psi. (103 bar)
- Temperatures -30° to +100°C
- Australian Made
Available in 12.5mm (1/2 inch); 19mm (3/4 inch); 25mm; 38mm; 50mm; 65mm; 76mm; 100mm

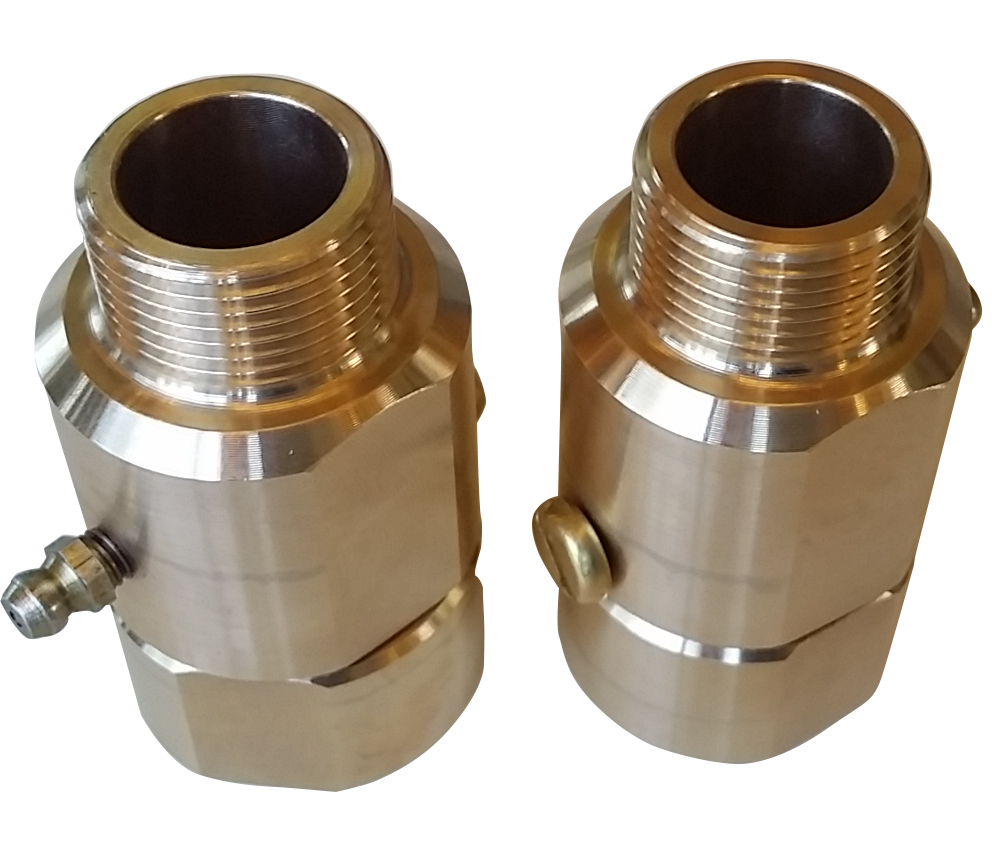

LG2 Bronze Swivel with BSP thread
Features:
- LG2 Bronze with Viton O’Ring seal to suit water, fuel or chemical
- SINGLE ball race, Grease Nipple Pressure to 1500psi. (103 bar)
- Temperatures -30° to +100°C
- Australian Made
Available in 12.5mm (½ inch), 19mm (¾ inch), 25mm (1 inch) & 38mm (1½ inch)
Stainless Steel 90° Swivel
Features:
- 90° Stainless Steel 3/8” Swivel 4000psi. (275 bar), 30L/pm
- Temperatures: to 120°C
- Made in Switzerland
Available in 3/8 inch only.
Stainless Steel Inline Swivel
Features:
- Inline Stainless Steel 3/8” Swivel 5850psi. (403 bar), 40L/pm
- Temperatures: to 160°C
- Made in Italy
Available in 3/8 inch only.
